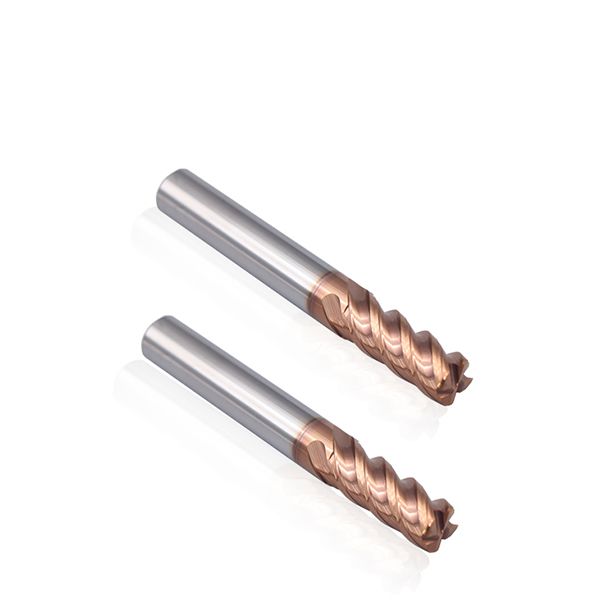

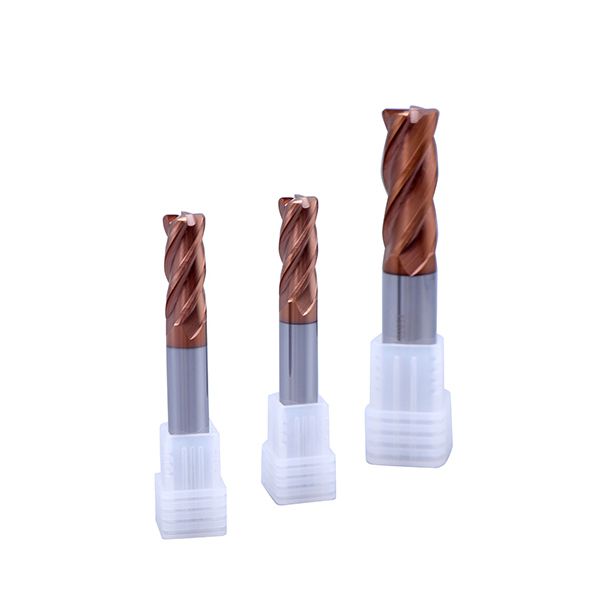

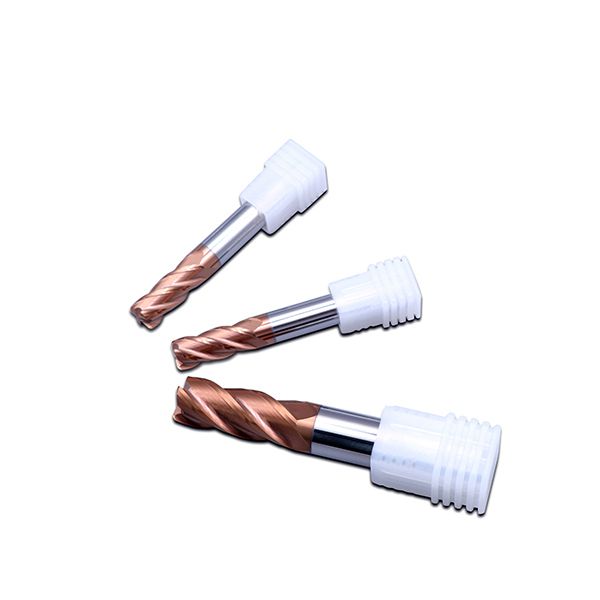

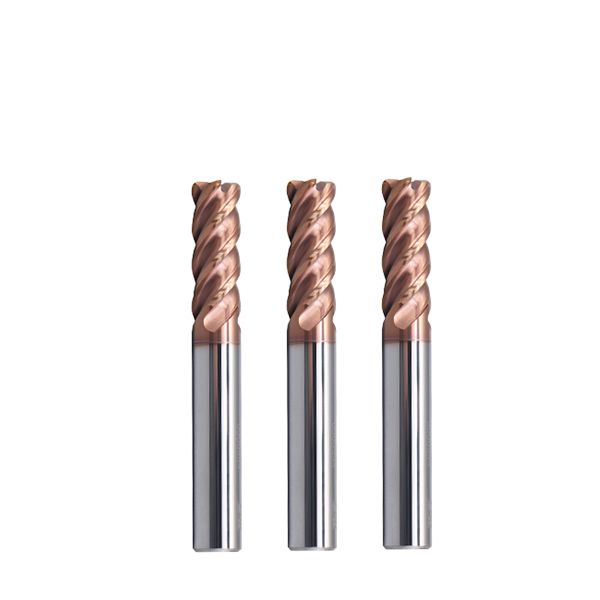

EMB09 Eckradiusfräser, 4 Schneiden
Produkteigenschaften
| Beschichtung | AITiN | HRC | HRC50/65 |
| Spiralwinkel | 45° | Schaft | Zylindrisch H6 |
| Material | IMC™ UMG Karbidstab | Abweichung Schnittdurchmesser | 0-0.030 |
HRC65 Hartmetallfräser, 4 Schneiden, Eckradius (UNT-EMB09)
| UNT EDP # Bestellen mit einem Klick | Eckradius R |
Fräser Durchmesser D1 |
Schaftdurchmesser D2 |
Schneidenlänge L1 |
Gesamtlänge L2 |
Schneiden |
| EMB090101 | R0.1 | 1.0 | 4 | 3 | 50 | 4 |
| EMB090102 | R0.2 | 1.0 | 4 | 3 | 50 | 4 |
| EMB090201 | R0.1 | 2.0 | 4 | 6 | 50 | 4 |
| EMB090202 | R0.2 | 2.0 | 4 | 6 | 50 | 4 |
| EMB090203 | R0.3 | 2.0 | 4 | 6 | 50 | 4 |
| EMB090302 | R0.2 | 3.0 | 4 | 8 | 50 | 4 |
| EMB090303 | R0.3 | 3.0 | 4 | 8 | 50 | 4 |
| EMB090305 | R0.5 | 3.0 | 4 | 8 | 50 | 4 |
| EMB090310 | R1.0 | 3.0 | 4 | 8 | 50 | 4 |
| EMB090402 | R0.2 | 4.0 | 4 | 11 | 50 | 4 |
| EMB090403 | R0.3 | 4.0 | 4 | 11 | 50 | 4 |
| EMB090405 | R0.5 | 4.0 | 4 | 11 | 50 | 4 |
| EMB090410 | R1.0 | 4.0 | 4 | 11 | 50 | 4 |
| EMB090505 | R0.5 | 5.0 | 6 | 13 | 50 | 4 |
| EMB090510 | R1.0 | 5.0 | 6 | 13 | 50 | 4 |
| EMB090602 | R0.2 | 6.0 | 6 | 16 | 50 | 4 |
| EMB090603 | R0.3 | 6.0 | 6 | 16 | 50 | 4 |
| EMB090605 | R0.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMB090610 | R1.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMB090615 | R1.5 | 6.0 | 6 | 16 | 50 | 4 |
| EMB090620 | R2.0 | 6.0 | 6 | 16 | 50 | 4 |
| EMB090802 | R0.2 | 8.0 | 8 | 20 | 60 | 4 |
| EMB090803 | R0.3 | 8.0 | 8 | 20 | 60 | 4 |
| EMB090805 | R0.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMB090810 | R1.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMB090815 | R1.5 | 8.0 | 8 | 20 | 60 | 4 |
| EMB090820 | R2.0 | 8.0 | 8 | 20 | 60 | 4 |
| EMB091005 | R0.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMB091010 | R1.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMB091015 | R1.5 | 10.0 | 10 | 25 | 75 | 4 |
| EMB091020 | R2.0 | 10.0 | 10 | 25 | 75 | 4 |
| EMB091030 | R3.0 | 10.0 | 10 | 30 | 75 | 4 |
| EMB091205 | R0.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMB091210 | R1.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMB091215 | R1.5 | 12.0 | 12 | 30 | 75 | 4 |
| EMB091220 | R2.0 | 12.0 | 12 | 30 | 75 | 4 |
| EMB091230 | 12.0 | 12.0 | 12 | 30 | 75 | 4 |
• Neben den Standardmodellen sind alle Eckradiusfräser auf Anfrage auch als Maßanfertigungen erhältlich.
